Product Description

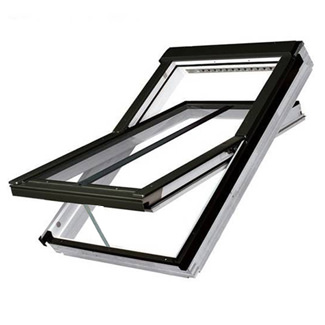

Fakro Z-Wave Electric Conservation Center Pivot FTU P2-Safety Double Glazed White Polyurethane Roof Window
- Available in Different Sizes
- Traditional centre-pivot operation
- Electrically operated pivot roof windows equipped with the Z-Wave system as standard.
- The integrated window control mechanism is situated under an aesthetic aluminium cover fitted in the lower part of the frame
- An actuator with a reach of 24 cm makes it possible to open and close the sash
- Built-in ZRD rain sensor automatically initiates the sash closing function when the first raindrops appear
- Suitable for pitches from 15-90Deg
- Window with a mullion bar is designed for historic or stylised buildings.
- The characteristic feature is a black vertical mullion bar in the middle of the glazing, cladding and flashing
- Suits traditional construction
- It keeps the unique, historic character of the building from the outside and creates a comfortable and modern interior
- Finish Details - White Polyurethane
- Highest quality pine wood, glued in layers, vacuum-impregnated
- Three coats of polyurethane varnish
- Ideal for creating a durable and smooth finish in white on the frame surface
- V40P automatic air vent to prevent unnecessary heat loss
- Glazing: P2 - Safety Double Glaze
- Single chamber glazing
- Laminated and anti-burglary class P2A according to standard EN 356
- Increased resistance against breakage
- It consists of the external toughened pane with an easy maintenance layer
- The warm TGI spacer and inner pane have two 3mm thick sheets of glass with a 0.76mm layer of PVB plastic membrane between them
- The glazing cavity is filled with inert gas- argon
- On the inner side of the laminated glass, it has a low emission coating which reduces penetration of UV rays by up to 99 Percent
- Flashing: EZV-A
- This is for interlocking tiles up to a 45mm profile.
- It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in the group for V depths in horizontal, vertical, and block
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing: EZJ-A
- Recessed Style
- For interlocking tiles up to 45mm profile
- It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in combinations for depth J in horizontal
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing: ELV
- For non-interlocking slate up to 10mm thick.
- It is ideal for fitting windows within slated roof coverings up to 10mm thickness.
- Applied as standard to individual windows in the roof's slope.
- Window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing: ELJ
- Recessed Style
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roof coverings up to 10mm thickness
- Applied as standard to individual windows in the slope of the roof
- window units combined for J depth horizontal only
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing: EPV
- For plain tiles up to 16mm thick.
- It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows on the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 25Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm).
- Flashing: EPJ
- Recessed Style
- For plain tiles up to 16mm thick.
- It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows on the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 30Deg to 90Deg for depths V
- Depths in the roof construction J - (-3cm).
- Flashing: EHN-A
- This is for interlocking tiles up to a 90mm profile.
- Suitable for the water-tight connection of roof windows with roof coverings such as roof tiles and high-profile metal sheeting
- It is applied to roof coverings with a profile depth of up to 90 mm and is used to individual windows in the roof's slope.
- They are used as module flashing for windows installed in horizontal and vertical combinations or block groups.
- The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
- It can be used on roofs with pitches between 15Deg and 90Deg
Fakro Z-Wave Electric Conservation Center Pivot FTU P2-Safety Double Glazed White Polyurethane Roof Window
RRP: £1024.8
Save 24%
£775.86
