Product Description

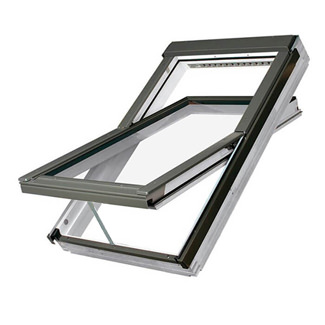

Fakro Z-Wave Electric Center Pivot FTW P5-Anti-Burglary Triple Glazed White Acrylic Roof Window
- Available in Different Sizes
- Traditional centre-pivot operation
- Electrically operated pivot roof windows equipped with the Z-Wave system as standard.
- The integrated window control mechanism is situated under an aesthetic aluminium cover fitted in the lower part of the frame
- Easy connection to the mains supply 230V
- Centre pivot window with factory-fitted equipment (switchboard, motor and transformer)
- Remotely open, close, and control accessories.
- An actuator with a reach of 24 cm makes it possible to open and close the sash
- Built-in ZRD rain sensor automatically initiates the sash closing function when the first raindrops appear
- Suitable for pitches from 15-90Deg
- Finish Details
- White Acrylic
- High-quality close-grain vacuum-impregnated redwood pine guaranteed to be knot-free
- Finished with white acrylic paint
- V40P automatic air vent to prevent unnecessary heat loss
- Glazing Details - P5 - Anti-Burglary Triple Glaze
- Double chamber glazing
- Laminated and anti-burglary class P2A according to standard EN 356
- Offers increased resistance against breakage
- The glazing cavity is filled with inert gas- krypton
- Warm TGI spacer
- The inner side of the laminated glass has a low-emission coating that reduces the penetration of UV rays by up to 99 per cent.
- Flashing Details - EZV-A
- This is for interlocking tiles up to a 45mm profile.
- It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in the group for V depths in horizontal, vertical, and block
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing Details - EZJ-A
- Recessed Style
- For interlocking tiles up to 45mm profile
- It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in combinations for depth J in horizontal
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing Details - ELV
- For non-interlocking slate up to 10mm thick.
- It is ideal for fitting windows within slated roof coverings up to 10mm thickness.
- Applied as standard to individual windows in the roof's slope.
- Window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing Details - ELJ - Recessed Style
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roof coverings up to 10mm thickness
- Applied as standard to individual windows in the slope of the roof
- window units combined for J depth horizontal only
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing Details - EPV
- For plain tiles up to 16mm thick.
- It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
- They are applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows on the slope of the roof.
- Window units may be combined in horizontal, vertical and block groups.
- Roofs with pitches from 25Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm).
- Flashing Details - EPJ - Recessed Style
- For plain tiles up to 16mm thick.
- It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
- They are applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows on the slope of the roof.
- Window units may be combined in horizontal, vertical and block groups.
- Roofs with pitches from 30Deg to 90Deg for depths V
- Depths in the roof construction J - (-3cm).
- Flashing Details - EHN-A
- This is for interlocking tiles up to a 90mm profile.
- Suitable for the water-tight connection of roof windows with roof coverings such as roof tiles and high-profile metal sheeting
- It is applied to roof coverings with a profile depth of up to 90 mm and is used to individual windows in the roof's slope.
- They are used as module flashing for windows installed in horizontal and vertical combinations or block groups.
- The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
- It can be used on roofs with pitches between 15Deg and 90Deg
- Flashing Details - ELV-T Thermo universal
- For non-interlocking slate up to 10mm thick
- It is ideal for fitting windows within slated roof coverings up to 10mm thickness.
- Applied as standard to individual windows in the roof's slope.
- Window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Additional thermal insulation
- Flashing Details - EHV-AT Thermo
- This is for interlocking tiles up to a 90mm profile.
- The ideal solution which guarantees a tight and warm connection of the window with the roof covering
- Insulation of the window above the level of battens.
- Glued flexible insulating material which adheres tightly to the window frame constituting a thermo-insulated frame
- Enhances U value of the window up to 15 Percent
- Used with all types of roof coverings up to 90 mm profile depth
- Applied as standard to individual windows in the roof's slope. The flashing may also be used as module Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Additional insulation
- Flashing Details - EZA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low-pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low-pitched attics to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for the horizontal joining of windows
- Profiled covering up to 45mm for use with roof tiles and profiled sheeting
- Used on roofs with pitches between 10Deg and 75Deg
- Flashing Details - ESA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low-pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low-pitched attics to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for the horizontal joining of windows
- Flat covering with a profile depth of 10 mm for use with slates and similarly flat roof coverings
- Used on roofs with pitches between 10Deg and 75Deg
- Flashing Details - EHA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low-pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low-pitched attics to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for the horizontal joining of windows
- Profiled covering up to 90mm for use with roof tiles, corrugated and deep profiled sheeting
- Used on roofs with pitches between 10Deg and 75Deg
Fakro Z-Wave Electric Center Pivot FTW P5-Anti-Burglary Triple Glazed White Acrylic Roof Window
RRP: £1018.8
Save 24%
£771.47
