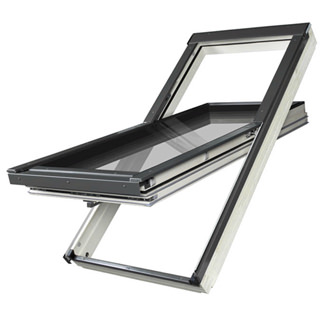

Fakro Manual High Pivot FYU White Safety Double Glaze Polyurethane Roof Window

Fakro Manual High Pivot FYU White Safety Double Glaze Polyurethane Roof Window Details

Fakro Manual High Pivot FYU White Safety Double Glaze Polyurethane Roof Window.

• Available in Different Sizes
• The centre pivot window, but its axis of rotation is situated above the centre of the window
• The lower part of the sash fulfils a top hung window function and the upper part of the sash is an additional source of daylight.
• The sash when opened in position from 0 to 45 degrees is supported by innovative supporting mechanism
• Enabling the sash to be open in any position within this range
• The window when installed in roofs with pitches 39-43 degrees will satisfy the requirements of DIN 5034-1 standard
• According to which the bottom window edge has to be situated 95cm above the floor level and the top minimum 220cm.
• The window is operated by the use of handle located at the bottom of the sash.
• The handle is equipped with a two-step micro opening mechanism.Automatic air inlet V40P.
• Sash rotated through 160 degrees is locked by the bolt for cleaning.
• Increased resistance to burglary - TopSafe system.
• A wide range of accessories. Installation range 20-65 degrees.
