Product Description

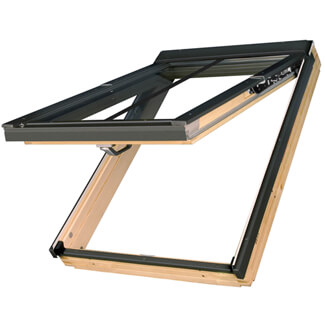

Fakro Manual Conservation Top Hung FPP P2 - Safety Double Glazed Natural Pine Roof Window
- Available in Different Sizes
- Top-hung and pivot windows come with two independent opening mechanisms
- The sash can be opened outwards from the top and via the centre pivot
- An innovatory hardware system guarantees complete sash stability in both opening functions
- The opening method can be switched using a preSelect sliding switch placed in the side part of the frame
- which is accessible after opening the window
- Windows turn through 180 degrees to clean the outer pane within the room.
- Suitable for pitches from 15Deg - 55Deg or non-standard option for opening from 55Deg - 85Deg
- Window with a mullion bar is designed for historic or stylised buildings.
- The characteristic feature is a black vertical mullion bar in the middle of the glazing, cladding and flashing
- Suits traditional construction
- It keeps the unique, historic character of the building from the outside and creates a comfortable and modern interior
- Finish Details
- Natural Pine
- Highest quality pine wood, glued in layers, vacuum-impregnated
- Wood painted twice with ecological acrylic lacquer in a natural colour
- V40P automatic air vent to prevent unnecessary heat loss
- P2 - Safety Double Glaze
- Single chamber glazing
- Laminated and anti-burglary class P2A according to standard EN 356
- Increased resistance against breakage
- It consists of the external toughened pane with an easy maintenance layer
- The warm TGI spacer and inner pane have two 3mm thick sheets of glass with a 0.76mm layer of PVB plastic membrane between them
- The glazing cavity is filled with inert gas- argon
- On the inner side of the laminated glass, it has a low emission coating which reduces penetration of UV rays by up to 99 Percent
- Flashing Details
- EZV-A
- This is for interlocking tiles up to a 45mm profile.
- It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in the group for V depths in horizontal, vertical, and block
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- EZJ-A
- Recessed Style
- For interlocking tiles up to 45mm profile
- It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in combinations for depth J in horizontal
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- ELV
- For non-interlocking slate up to 10mm thick.
- It is ideal for fitting windows within slated roof coverings up to 10mm thickness.
- Applied as standard to individual windows in the roof's slope.
- Window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- ELJ
- Recessed Style
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roof coverings up to 10mm thickness
- Applied as standard to individual windows in the slope of the roof
- window units combined for J depth horizontal only
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- EPV
- For plain tiles up to 16mm thick.
- It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
- They are applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows on the slope of the roof.
- Window units may be combined in horizontal, vertical and block groups.
- Roofs with pitches from 25Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm).
- EPJ
- Recessed Style
- For plain tiles up to 16mm thick.
- It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
- They are applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows on the slope of the roof.
- Window units may be combined in horizontal, vertical and block groups.
- Roofs with pitches from 30Deg to 90Deg for depths V
- Depths in the roof construction J - (-3cm).
- EHN-A
- This is for interlocking tiles up to a 90mm profile.
- Suitable for the water-tight connection of roof windows with roof coverings such as roof tiles and high-profile metal sheeting
- It is applied to roof coverings with a profile depth of up to 90 mm and individual windows on the roof's slope.
- They are used as module flashing for windows installed in horizontal and vertical combinations or block groups.
- The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
- It can be used on roofs with pitches between 15Deg and 90Deg
Fakro Manual Conservation Top Hung FPP P2 - Safety Double Glazed Natural Pine Roof Window
RRP: £804
Save 32%
£545.08
