Product Description

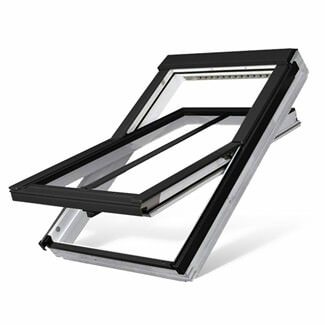

Fakro Manual Conservation Center Pivot FTU P2 - Safety Double Glaze White Polyurethane Roof Window
- Available in Different Sizes
- Traditional centre pivot operation
- Well equipped window version with hinges located in the middle of the window height
- Turn through 180Deg to clean outer pane within the room
- Operating handle in the base of the sash for ease of use
- Suitable for retro-fitting of electronic operation
- Compatible for pitches from 15-90Deg
- Window with a mullion bar is designed for historic or stylised buildings.
- Characteristic feature is black vertical mullion bar in the middle of the glazing, cladding and flashing
- Suits traditional construction
- Keeps the unique, historic character of the building from the outside and create a comfortable and modern interior
- Finish - White Polyurethane
- Highest quality pine wood, glued in layers, vacuum impregnated
- Three coats of polyurethane varnish
- Ideal for creating a durable and smooth finish in white on the frame surface
- V40P automatic air vent to prevent unnecessary heat loss
- Glazing - P2 - Safety Double Glaze
- Single chamber glazing
- Laminated and anti-burglary class P2A according to standard EN 356
- Increased resistance against breakage
- Consists of external toughened pane with easy maintenance layer
- Warm TGI spacer and inner pane has two 3mm thick sheets of glass with 0.76mm layer of PVB plastic membrane between them
- Glazing cavity is filled with inert gas- argon
- On the inner side of the laminated glass it has a low emission coating which reduces penetration of UV rays by up to 99 Percent
- Flashing - EZV-A
- For interlocking tiles up to 45mm profile.
- Ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in group for V depths in horizontal, vertical, and block
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing - EZJ-A - Recessed Style
- For interlocking tiles up to 45mm profile
- Ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in combinations for depth J in horizontal
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing - ELV
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness.
- Applied as standard to individual windows in the slope of the roof.
- window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing - ELJ - Recessed Style
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness
- Applied as standard to individual windows in the slope of the roof
- window units combined for J depth horizontal only
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing - EPV
- For plain tiles up to 16mm thick.
- Ideal for a fit between windows and heavy tiled roof coverings such as plain tiles, shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows in the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 25Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm).
- Flashing - EPJ - Recessed Style
- For plain tiles up to 16mm thick.
- Ideal for a fit between windows and heavy tiled roof coverings such as plain tiles, shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows in the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 30Deg to 90Deg for depths V
- Depths in the roof construction J - (-3cm).
- Flashing - EHN-A
- For interlocking tiles up to 90mm profile.
- Suitable for the water tight connection of roof windows with roof coverings such as roof tiles and high profile metal sheeting
- Applied to roof coverings with a profile depth of up to 90 mm and is applied to individual windows in the slope of the roof.
- Used as module flashing for windows installed in horizontal and vetrtical combinations or block groups.
- The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
- Can be used on roofs with pitches between 15Deg and 90Deg
Fakro Manual Conservation Center Pivot FTU P2 - Safety Double Glaze White Polyurethane Roof Window
RRP: £656.4
Save 31%
£449.77
