Product Description

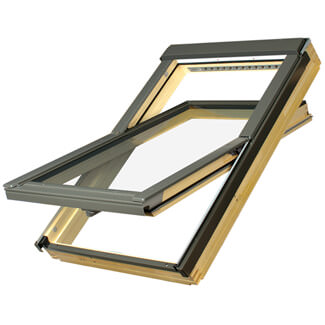

Fakro Manual Center Pivot FTP R1 - Sound Reducing Pine Roof Window is made to reduce noise and create a quiet, comfortable interior. This window is developed in high-quality pine with a toughened glass exterior and specially laminated glass inside. The glass is filled with epoxy resin and a low-emission coating along with an inert gas to soundproof the window to a high degree. You can open the window with a handle provided at the base and turn it through 180 degrees for proper cleaning. You can simply push the window open to any position and keep it open for maximum flexibility.
- Available in Different Sizes
- Traditional centre pivot operation
- Well equipped window version with hinges located in the middle of the window height
- Turn through 180Deg to clean outer pane within the room
- Operating handle in the base of the sash for ease of use
- Suitable for retro-fitting of electronic operation
- Compatible for pitches from 15-90Deg
- Finish Details
- Natural Pine
- High quality close-grain vacuum - impregnated pine guaranteed to be knot-free
- Finished with natural acrylic lacquer
- V40P automatic air vent to prevent unnecessary heat loss
- R1 - Sound Reducing Glaze
- Significantly reduces noise penetration
- Constructed from toughened glass on the outside, and specially laminated glass inside
- Laminated glass has a layer of soft, sound proofing epoxy resin, and a low emission coating
- The glazing cavity is filled with gas, which also reduces noise penetration
- Sound-proof glazing is made to an exceptionally high specification Rw = 40dB
- Flashing - EZV-A
- For interlocking tiles up to 45mm profile.
- Ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in group for V depths in horizontal, vertical, and block
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing - EZJ-A Recessed Style
- For interlocking tiles up to 45mm profile
- Ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in combinations for depth J in horizontal
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing - ELV
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness.
- Applied as standard to individual windows in the slope of the roof.
- window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing - ELJ Recessed Style
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness
- Applied as standard to individual windows in the slope of the roof
- window units combined for J depth horizontal only
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing - EPV
- For plain tiles up to 16mm thick.
- Ideal for a fit between windows and heavy tiled roof coverings such as plain tiles, shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows in the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 25Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm).
- Flashing - EPJ Recessed Style
- For plain tiles up to 16mm thick.
- Ideal for a fit between windows and heavy tiled roof coverings such as plain tiles, shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows in the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 30Deg to 90Deg for depths V
- Depths in the roof construction J - (-3cm).
- Flashing - EHN-A
- For interlocking tiles up to 90mm profile.
- Suitable for the water tight connection of roof windows with roof coverings such as roof tiles and high profile metal sheeting
- Applied to roof coverings with a profile depth of up to 90 mm and is applied to individual windows in the slope of the roof.
- Used as module flashing for windows installed in horizontal and vetrtical combinations or block groups.
- The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
- Can be used on roofs with pitches between 15Deg and 90Deg
- Flashing - ELV-T Thermo universal
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness.
- Applied as standard to individual windows in the slope of the roof.
- window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Additional thermal insulation
- Flashing - EHV-AT Thermo
- For interlocking tiles up to 90mm profile.
- Ideal solution which guarantees tight and warm connection of the window with the roof covering
- Insulation of the window above the level of battens.
- Glued flexible insulating material which adheres tightly to the window frame constituting a thermo-insulated frame
- Enhances U value of the window up to 15 Percent
- Used with all types of roof coverings up to 90 mm profile depth
- Applied as standard to individual windows in the slope of the roof. The flashing may also be used as module Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Additional insulation
- Flashing - EZA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low pitched attics in order to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for horizontal joining of the windows
- Profiled covering up to 45mm, for use with roof tiles and profiled sheeting
- Used on roofs with pitches between 10Deg and 75Deg
- Flashing - ESA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low pitched attics in order to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for horizontal joining of the windows
- Flat covering with a profile depth of 10 mm, for use with slates and similarly flat roof coverings
- Used on roofs with pitches between 10Deg and 75Deg
- Flashing - EHA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low pitched attics in order to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for horizontal joining of the windows
- Profiled covering up to 90mm, for use with roof tiles, corrugated and deep profiled sheeting
- Used on roofs with pitches between 10Deg and 75Deg
Fakro Manual Center Pivot FTP R1 - Sound Reducing Glaze Natural Pine Roof Window
RRP: £519.6
Save 30%
£361.45
