Product Description

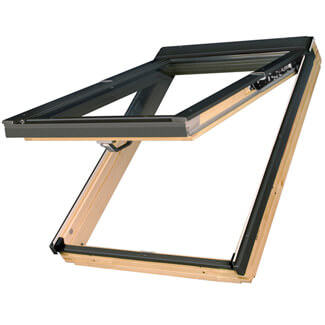

Fakro Double Glaze Manual Top Hung FPP Natural Pine Roof Window.
- Available in Different Sizes
- Top hung and pivot windows come with two independent opening mechanisms
- The sash can be opened outwards from the top and via centre pivot
- Innovatory hardware system guarantees complete sash stability in both opening functions
- Opening method can be switched using preSelect sliding switch placed in the side part of the frame
- which is accessible after opening the window
- Windows turn through 180Deg to clean outer pane within the room.
- Suitable for pitches from 15Deg - 55Deg or non-standard option for opening from 55Deg - 85Deg
- Finish Details
- Natural Pine
- Highest quality pine wood, glued in layers, vacuum impregnated
- Wood painted twice with ecological acrylic lacquer in natural colour
- V40P automatic air vent to prevent unnecessary heat loss
- P2 - Safety Double Glaze
- Single chamber glazing
- Laminated and anti-burglary class P2A according to standard EN 356
- Increased resistance against breakage
- Consists of external toughened pane with easy maintenance layer
- Warm TGI spacer and inner pane has two 3mm thick sheets of glass with 0.76mm layer of PVB plastic membrane between them
- Glazing cavity is filled with inert gas- argon
- On the inner side of the laminated glass it has a low emission coating which reduces penetration of UV rays by up to 99 Percent
- Flashing - EZV-A
- For interlocking tiles up to 45mm profile.
- Ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in group for V depths in horizontal, vertical, and block
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing - EZJ-A - Recessed Style
- For interlocking tiles up to 45mm profile
- Ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
- Universal flashing which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
- Applied to individual windows in the slope of the roof
- Used as flashing for windows used in combinations for depth J in horizontal
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing - ELV
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness.
- Applied as standard to individual windows in the slope of the roof.
- window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Flashing - ELJ - Recessed Style
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness
- Applied as standard to individual windows in the slope of the roof
- window units combined for J depth horizontal only
- Roofs with pitches from 20Deg to 90Deg for depths J
- Depths in the roof construction J - (–3cm)
- Flashing - EPV
- For plain tiles up to 16mm thick.
- Ideal for a fit between windows and heavy tiled roof coverings such as plain tiles, shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows in the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 25Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm).
- Flashing - EPJ - Recessed Style
- For plain tiles up to 16mm thick.
- Ideal for a fit between windows and heavy tiled roof coverings such as plain tiles, shingles.
- Applied to roof coverings of up to 24 – 32 mm thickness.
- For individual windows in the slope of the roof.
- Window units may also be combined in horizontal, vertical and block groups.
- Roofs with pitches from 30Deg to 90Deg for depths V
- Depths in the roof construction J - (-3cm).
- Flashing - EHN-A
- For interlocking tiles up to 90mm profile.
- Suitable for the water tight connection of roof windows with roof coverings such as roof tiles and high profile metal sheeting
- Applied to roof coverings with a profile depth of up to 90 mm and is applied to individual windows in the slope of the roof.
- Used as module flashing for windows installed in horizontal and vetrtical combinations or block groups.
- The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
- Can be used on roofs with pitches between 15Deg and 90Deg
- Flashing - ELV-T Thermo universal
- For non-interlocking slate up to 10mm thick.
- ideal for fitting windows within slated roofs coverings up to 10mm thickness.
- Applied as standard to individual windows in the slope of the roof.
- window units combined for V depth in vertical, horizontal and block groups
- Roofs with pitches from 15Deg to 90Deg for depths V
- Depths in the roof construction V - (0cm)
- Additional thermal insulation
- Flashing - EHV-AT Thermo
- For interlocking tiles up to 90mm profile.
- Ideal solution which guarantees tight and warm connection of the window with the roof covering
- Insulation of the window above the level of battens.
- Glued flexible insulating material which adheres tightly to the window frame constituting a thermo-insulated frame
- Enhances U value of the window up to 15 Percent
- Used with all types of roof coverings up to 90 mm profile depth
- Applied
as standard to individual windows in the slope of the roof. The
flashing may also be used as module Roofs with pitches from 15Deg to
90Deg for depths V
- Depths in the roof construction V - (0cm)
- Additional insulation
- Flashing - EZA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low pitched attics in order to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for horizontal joining of the windows
- Profiled covering up to 45mm, for use with roof tiles and profiled sheeting
- Used on roofs with pitches between 10Deg and 75Deg
- Flashing - ESA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low pitched attics in order to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for horizontal joining of the windows
- Flat covering with a profile depth of 10 mm, for use with slates and similarly flat roof coverings
- Used on roofs with pitches between 10Deg and 75Deg
- Flashing - EHA
- Lifts windows out of the roofline by 10 degrees.
- Flashing for changing window installation angle
- Flashing is ideal for a flush fit of the window with low pitch roof coverings of 10Deg or more
- Enables the installation angle to be raised by an additional 10Deg
- Used in mansard roofs, in extensions and adaptations of low pitched attics in order to extend space in the attic.
- Commonly used to install with single windows in roof slopes
- The flashing is also used in modules for horizontal joining of the windows
- Profiled covering up to 90mm, for use with roof tiles, corrugated and deep profiled sheeting
- Used on roofs with pitches between 10Deg and 75Deg
