Product Description

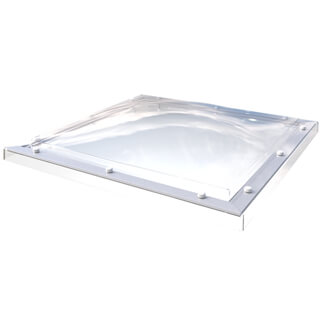

Brett Martin Mardome Trade 750mm Fixed Dome Over Structured Glaze Rooflight - Hit And Miss.
- Available in different widths: 600mm and 750mm
- Available in different Shapes: Domed and Pyramid
- Choice of different Tints: Clear, Opal and Patterned
- Available in different Kerb: Builders Upstand, 150mm uPVC and 300mm uPVC
- Glazing: Dome Over Structured
- Material: Polycarbonate
- Opening: Fixed
- Length: 750mm
- Polycarbonate dome roof lights with a PVC-U multi-walled kerb intended for installation on flat roofs of all modern building types to provide natural light (and ventilation where specified)
- Designed and manufactured under an ISO9001-approved quality system
- Ventilation: Manual hit-and-miss trickle vents
- Thermally insulated
- Multiwall PVC kerb aids insulation levels (150mm - Standard or 300mm - Tall)
- Designed for optimal use of natural light and provides stylish, contemporary looks as standard
- Quick and easy installation
- Ideal choice for flat roofs with options
- Sleek, contemporary aesthetics inside and out
- Aerodynamic low-rise glazing unit
- Huge range of sizes and options
- Class B non-fragile to ACR[M]001 when new and fully installed to Brett Martin installation guidelines
- BBA approved
- 10-year warranty
- Design Features:
- Contemporary low-rise profile (dome and pyramid options)
- Ur-value to as low as 1.01 W/m2K
- Constant separation of glazing skins across the full width of the dome, including fixing flange on triple skin and better glazing options. This avoids cold spots and minimises the risk of condensation
- For ease of installation, the tapered kerb foot does not require timber fillets and provides a clean external finish for all roofing types
- Suitable for flat roof applications with a pitch of typically 0 to 15 degrees
- Features:
- Multiwall PVC Kerb options with thermally efficient triple wall structure
- Steep kerb walls allow larger glazing areas for more natural daylight
- Extensive options to satisfy ventilation and light transmission
- Constant separation of glazing skins across full dome width and fixing flange on triple skin and better glazing minimises the risk of condensation
- Concealed mechanisms on mains-powered opening units
- Thermal Efficiency:
- Structured polycarbonate inner glazing - 1.39 – 1.90 OVERALL U-VALUE* (W/M2K)
- Hit And Miss:
- Two manually operated hit-and-miss trickle vents provide a combined 8400mm² equivalent area ventilation. (NB for access hatches measuring 1050 x 1050 and less, only one vent is supplied, so the equivalent area is halved)
- Tint:
- Clear - High Visibility:
- Maximum light transmission
- Maximum clarity of vision of views and objects through the dome
- Opal-Diffused Light And Solar Control:
- Combines privacy with high levels of diffused light transmission
- Prevents solar glare and reduces solar heat gain
- Impairs vision of views and objects through the dome
- Patterned - Privacy:
- Combines privacy with high levels of light transmission
- Diffused daylight
- Impairs vision of views and objects through the dome
- Kerb:
- Builders Upstand:
- Dome only is supplied for screw fixing directly to the top of a builders upstand
- 150mm uPVC:
- For mounting at roof surface level, providing 150mm of waterproofing height
- 300mm uPVC:
- For mounting typically below roof surface level, providing 300mm of height for insulation and waterproofing
Brett Martin Mardome Trade 750mm Fixed Dome Over Structured Glaze Rooflight - Hit And Miss
RRP: £797.28
Save 40%
£478.37
