Product Description

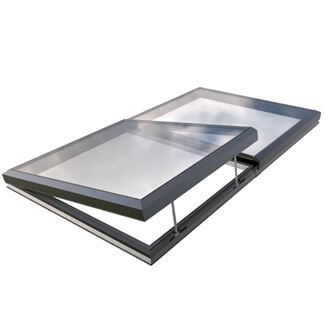

Brett Martin Fixed And Opening Glass Link Rooflight
- Opening: Powered
- Powered with wall-switch (concealed chain actuator)
- Minimalist appearance including flush powered opening modules with hidden actuators and cables, meaning fixed and opening modules appear identical
- Fast and simple installation thanks to large modules and no additional flashings - modules simply lap together and side-fix
- Guaranteed weather tightness with factory-glazed modules requiring no on-site glazing sealant
- Suitable for pitches of 2 degrees - 35 degrees providing a versatile solution for a variety of applications
- Elegant aluminium framework powder coated to fashionable anthracite grey RAL 7016 outside and white RAL 9010 inside
- Highly thermally efficient with thermally broken frame and units glazed with Low-E insulated double-glazed glass units
- Safety of those below and above the roof light assured thanks to a laminated inner pane and the product achieving non-fragility to CWCT TN-67 (for class 2 roofs) and Class B non-fragile to ACR[M]001 when new and fully installed to Brett Martin installation guidelines
- Highly secured by design opens in new window accreditation
- 10-year commercial product warranty
- BBA approved
- Design Features:
- Premium quality factory-assembled glass roof light units
- Modules are constructed from structurally glazed double-glazed units in a powder-coated, fully thermally broken aluminium frame
- All modules are flush, providing a seamless aesthetic
- Components of powered opening roof lights are completely concealed for an unobstructed light well
- Dual colour powder coated as standard, fully thermally broken aluminium framework
- Spans of up to 3800mm are possible with individual modules of up to 3800x1750mm allowing for large uninterrupted
- daylight areas
- Fixed Brett Martin Glass Link roof lights achieve Secured by Design accreditation
- Sleek and contemporary design
- Ideal for both residential and commercial applications
- Product Options Summary:
- Multipane Modules
- Large modules can be glazed with multiple panes of glass to avoid the need for heavier and more expensive glass specifications
- Glazing Specification:
- - Standard specification
- - 6mm toughened outer - 16mm Argon spacer
- - 9.5mm laminate with 1.5mm PVB interlayer (for very large sizes inner pane increases to 11.5mm)
- - CWCT TN-67 for class 2 roofs
- - ACR[M]001 Class B non-fragile
Specification
Brett Martin Fixed And Opening Glass Link Rooflight
RRP: £5086.64
Save 50%
£2543.32
